Product Overview

NOTE Our prices include products and shipping costs, but do not include local customs clearance fees. If you have special requirements for the declared value of the product, please leave a message and let us know.
The machine has a built-in heat sink，Can work continuously for a long time

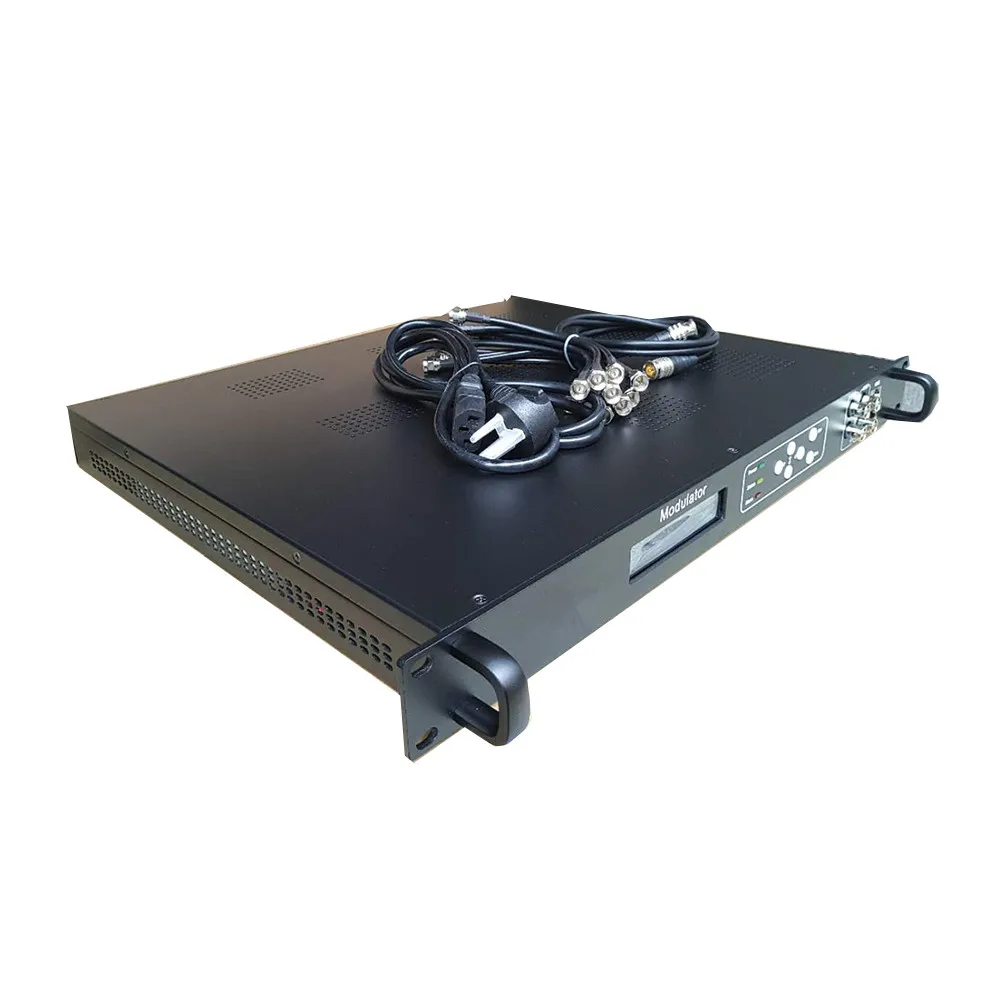

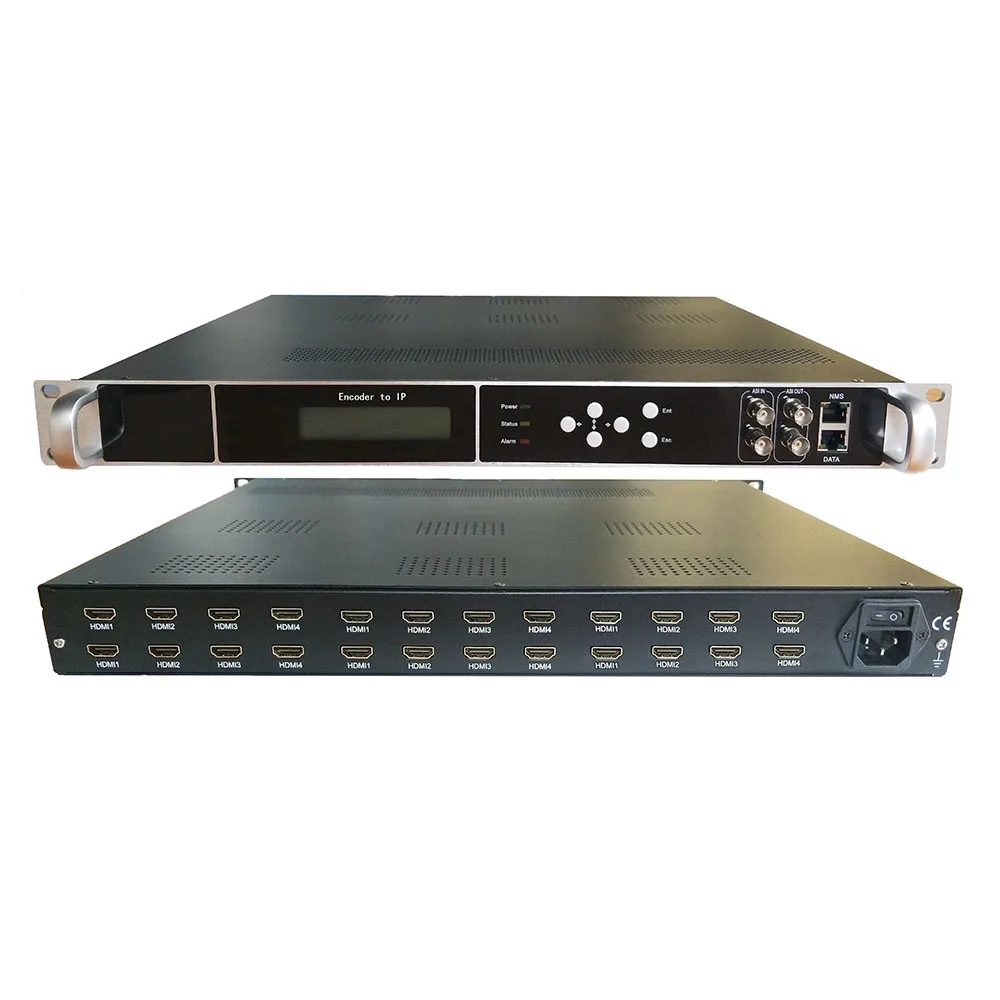

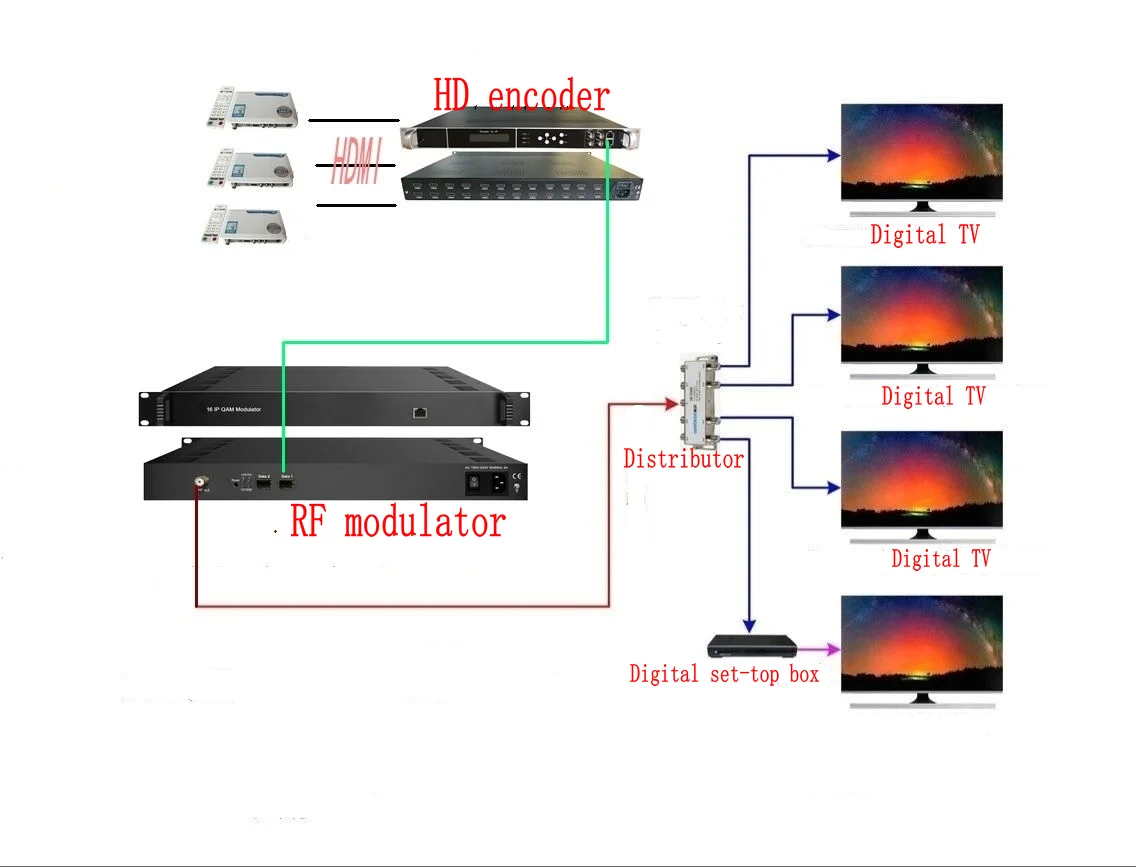

EN240 series encoding to IP, ASI all-in-one is our latest research and development cost-effective input HDMI equipment. The device supports 24-channel HDMI inputs, 1 Gigabit IP input / output; supports 2 independent ASI outputs, 4 MPTS outputs, and SPTS outputs. It has the characteristics of high integration, high performance and low cost. A single device integrates a set of front-end system functions, which is very suitable for digital TV transmission systems such as hotels, clubs, hospitals, and baths.

main features

Support 24CH HDMI input.（Support HDCP）
Support 1 Gigabit IP input / output, SPTS / MPTS output, UDP / RTP protocol (multicast), RTSP unicast output
Support 2 ASI inputs
Support 2 ASI independent outputs
Support LCD and key functions
Support network management (Web)
Support online upgrade

Technical index

Input HDMI (24 HDMI)
2 ASI inputs
1 IP Gigabit Ethernet port input
Output 2 independent ASI outputs
IP output (SPTS output, MPTS output), UDP, RTP protocol
Video encoding encoding format MPEG-4 AVC / H.264
Input interface HDMI
Resolution Input: 1920 × 1080 60P/50P/30P / 1920 × 1080i / 1280 × 720P / 720x576i / 720x480i @ 50 / 59.94Hz
Output: 1920 × 1080_60P/50P/30P, 1920 × 1080_30P, 1280 × 720_30P, 720x576_25P, 720x480_25P
Bit rate 1Mbps ~ 13Mbps (each channel)
Rate mode CBR, VBR
Audio encoding Coding format MPEG1 Layer2
Sampling rate: 48KHz
Bit rate 64kbps, 128Kbps, 192kbps, 224kbps, 256kbps, 320kbps, 384kbps
System Network Management (Web) supports network upgrade
Chinese / English operation interface
General Size (L × W × H) 482mm × 410mm × 44mm
Weight 8kg
Temperature range 0 ~ 45 ℃ (working); -20 ~ 80 ℃ (storage)
Power requirements AC100 ~ 240V, 50 / 60Hz
Power consumption <90W
